Deublin for drilling
Washpipes and Seals for Drilling
On a drilling rig, the washpipe carries drilling mud into the turning top drive. Deublin’s hard-seal washpipes last up to 20 times longer than packing, and a service kit changes the seals in as little as ten minutes.
- 7,500 psimax. working pressure (517 bar)
- 250 rpmmax. speed
- 3½ " and 4" borewashpipe size
- 10 minseal change with a kit
The range
Top Drive Washpipe Service Kits
E.L.S. (Extended Life Service) seals with balanced mechanical seals. Deublin washpipe assembly 20609-100 replaces obsolete kit 20609-100C.
| For top drive models | Replaces washpipe part numbers |
|---|---|
| TDX1250, TDX1000, TDS1000, HPS-02 750, HPS-1000, PS2-500, PS2-500A, PS2-650, PS2-750, PS2-750A, PSI-1000, TDS-4, TDS-8 | 30182002, M614003598, P611000051, P61100047, P11000059, P611000043, P11000049, P11000050, P611000137, P11000057, P611000062, 10700462, BA0073930 |
Why Deublin washpipes
Less Downtime on the Rig
Hard Seals Last
Field-proven to last up to 20 times longer than packing, with less heat and torque.
Fast Seal Change
A service kit replaces the top and bottom seals in about ten minutes.
Any Drilling Mud
For water-based, synthetic and oil-based muds.
Coiled Tubing Too
Deublin builds multi-channel unions to suit coiled tubing units.
How it works
How Washpipes Work
The washpipe carries drilling mud from the fixed gooseneck into the turning top drive. Two mechanical seals – one fixed, one turning – keep the mud in at high pressure.
What’s in a Washpipe
Upper and lower nuts hold the assembly. A floating seal carrier lets the two seals line up with each other as the drive turns.
Check Before Fitting
Swap tapered stem liners for straight ones, and check run-out and end float are within limits – otherwise the seals won’t last.
Fit It Carefully
Tighten the nuts with the bar provided – never a hammer. Both nuts have left-hand threads.
Seals the Right Way Up

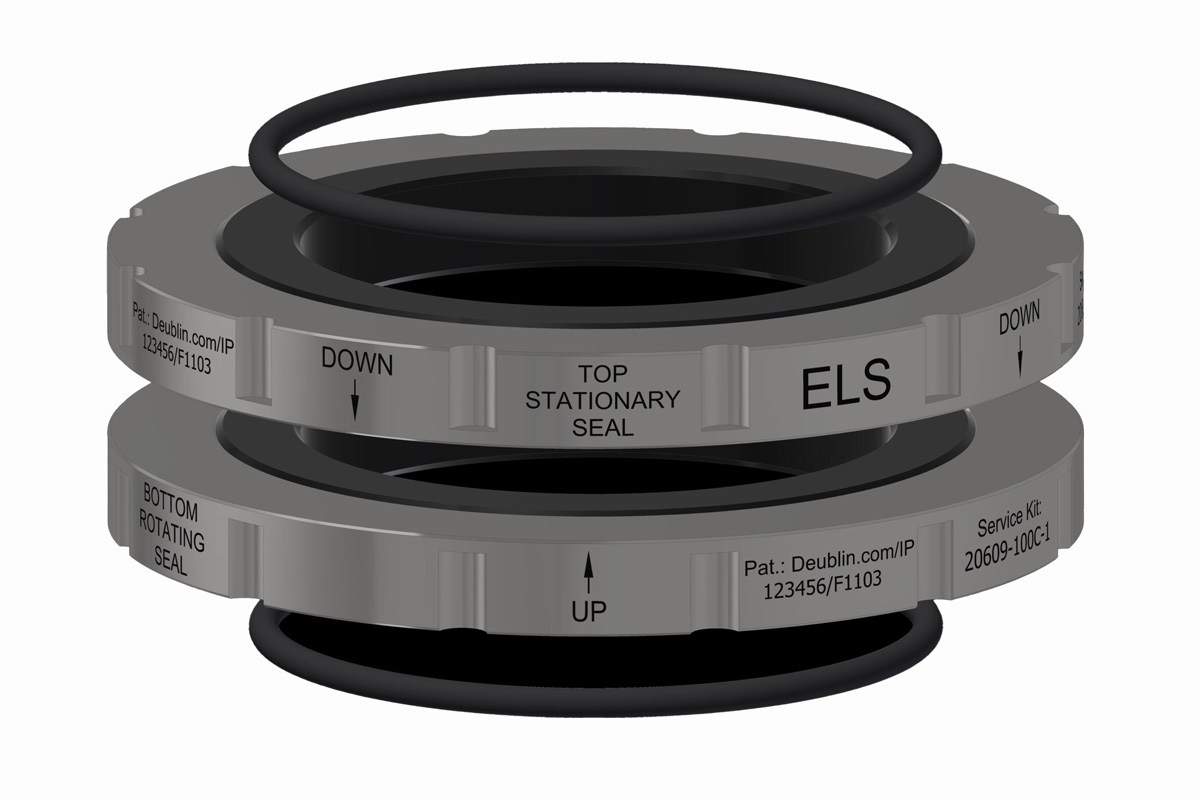

Each seal is marked. The top seal is fixed and faces down; the bottom seal turns and faces up. The notches fit over the dowels.
Service kits
Wash Pipe Seal Service Kits
Deublin Service Kit / Face Seal Kit for Mechanical Seal Washpipe Assembly for Top Drives – Deublin OEM Components.
Kit Includes
- Top Seal Assembly
- Bottom Seal Assembly
- O-Rings
For Use with the Following Drilling Media Types
- Water Based
- Synthetic Based & Oil Based
Top Drive Mfg. Service Kit Part Numbers
- BA0087595
- 30182002-500
Talk to Us About Your Application
Tell us what the machine has to do – the load, the speed, how often it runs and the space you have – and we’ll help you choose the right Deublin product.
