Guide, Spread and Inspect Running Webs
Erhardt+Leimer, in Germany, is one of the world’s leading makers of web guiding, spreading, tension control and inspection systems for running webs and belts – in printing, film, paper, corrugating, textiles, nonwovens, tyres and rubber. Norman G Clark is the exclusive Australian distributor.
Not sure what you need? Call (03) 9116 9200 and talk it through with our team.
Solutions
What Do You Need to Do?
Printing & labels. Label, flexo, offset, gravure and digital presses.
Film, foil & coating. Extrusion, coating and converting lines.
Paper & corrugating. Paper machines, coaters and corrugators.
Textiles & nonwovens. Woven, knitted and nonwoven webs.
Metals, tyres & rubber. Strip lines, coating lines and rubber calendars.
Keep the Web Running Straight
Correct the web’s side position before it reaches the next process.
Spread Textiles Without Creases
Guide and spread woven and knitted fabric at the same time.
See the Print While It Runs
A stable, zoomable image of the moving print for the press operator.
Find Every Defect
100% inspection of printed and plain webs at full speed.
The range
Erhardt+Leimer Products
Keep the web running straight

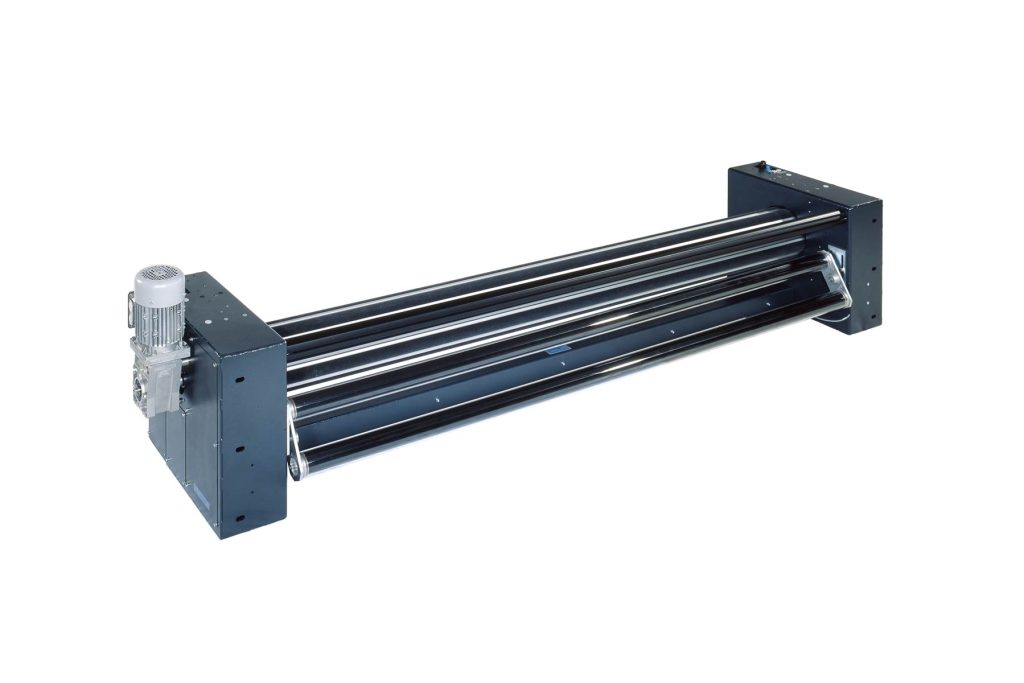

Elguider Pivoting Frame
A pivoting frame with two rollers that guides the web in tight spaces.
±5° correction
Keep the web running straight
Elroller Steering Rollers
Steering rollers that correct the web on the infeed plane, for long entry paths.
1 or 2 rollers
Spread textiles without creases
Elsmart Guiding and Spreading
Segmented roller guiders that guide and spread textile webs.
To 130 m/min
See the print while it runs
Elscan Web Monitoring
Two-camera print monitoring with smooth zoom, for the press operator.
Up to 800 m/min
Find every defect
Nyscan Print Inspection
100% print inspection from pre-press proofing to the rewinder.
Pre-print to post-print
Find every defect
Elsis Web Inspection
Surface inspection for paper, film, coatings, metals and nonwovens.
Reflected or transmitted light
How it works
How Web Guiding Works
Sensor, controller and actuator in a loop.
Measure
A sensor watches the web edge (or a printed line) and reports how far it has moved sideways.
Correct
A controller drives an actuator that swings a roller frame. Because the web follows the roller it runs onto, a small swing steers the web back into position – without slipping, so there must always be enough web tension.
Why E+L, through Norman G Clark
Web Handling Specialists
Complete Systems
Sensors, controllers, actuators, guiders, spreaders and inspection from one maker.
Proven Worldwide
A leading supplier to printing, film, paper, textile and tyre makers.
Made for Your Line
Guides sized to your web width, tension and space.
Exclusive in Australia
Norman G Clark supplies and supports E+L – call (03) 9116 9200.
