Fire Sleeves, Blankets and Tapes That Stand Up to Extreme Heat
ADL Insulflex in Canada has made non-asbestos high-temperature textiles since 1962 – sleeves, blankets, tapes and sealants that protect hoses, cables and people from flame, radiant heat and molten metal. Norman G Clark is an authorised Insulflex distributor and holds stock in Australia.
Not sure what you need? Call (03) 9116 9200 and talk it through with our team.
Solutions
What Do You Need to Protect?
Steel & metals. EAFs, blast furnaces, casting, foundries and glass.
Mining & off-highway. Hydraulic hoses and cables on mobile machines; MSHA certified.
Fire & emergency vehicles. Fire apparatus, airport and municipal fleets.
Marine, offshore & rail. DNV-GL and rail-certified fire protection.
General industry. Welding, steam lines, valves and expansion joints.
Hoses and Cables Near Heat or Flame
Fire sleeves that shed molten splash and resist fire.
Lines You Can’t Disconnect
Hook-and-loop (VCO) sleeves wrap on without disconnecting.
Radiant Heat
Reflective sleeves and blankets turn back up to 90% of radiant heat.
Molten Splash and Weld Spatter
Heavy coated blankets and curtains for steel, aluminium and glass works.
People from Hot Pipes
Insulating sleeves that cut burns and heat loss.
The range
ADL Insulflex Products
People from hot pipes

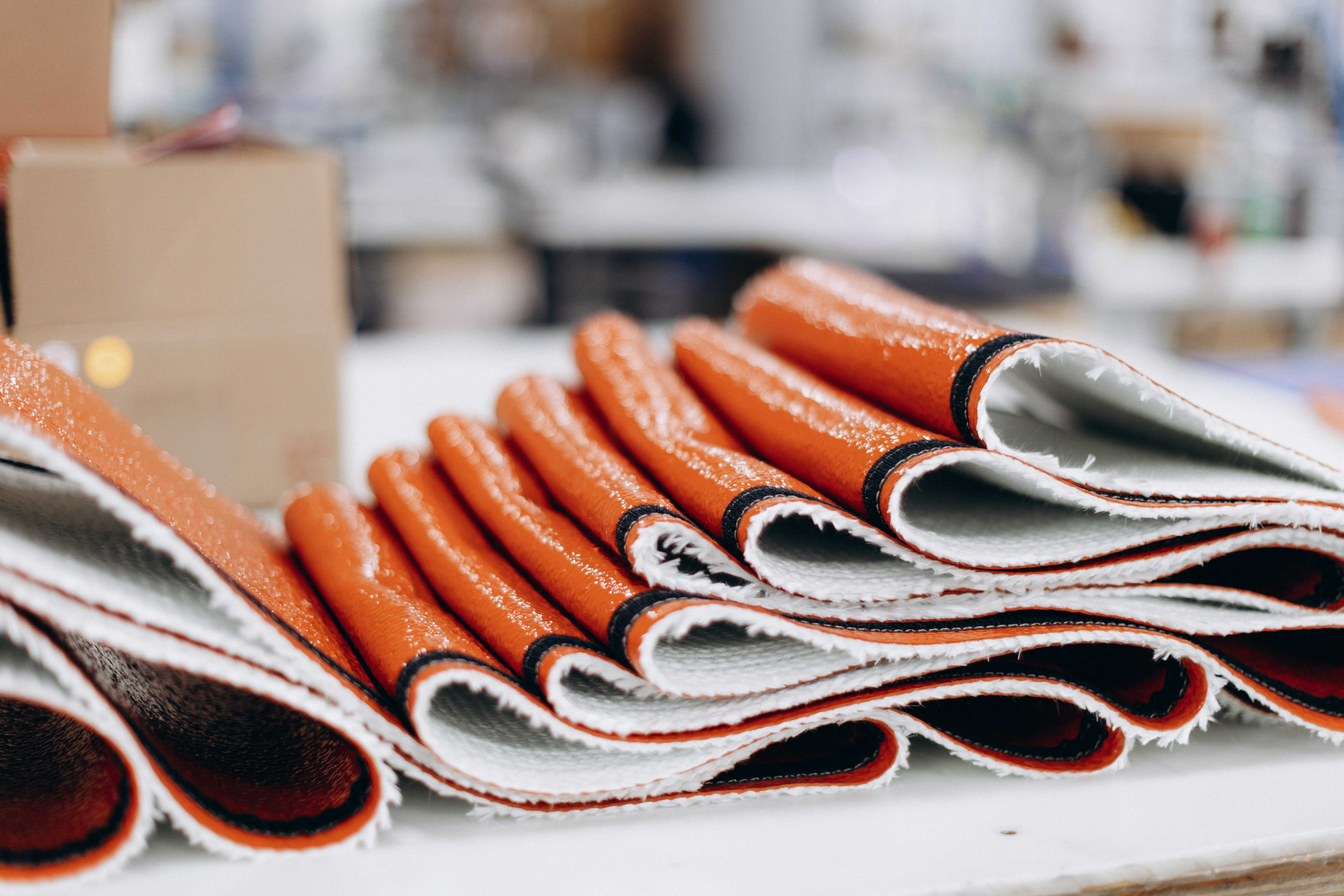

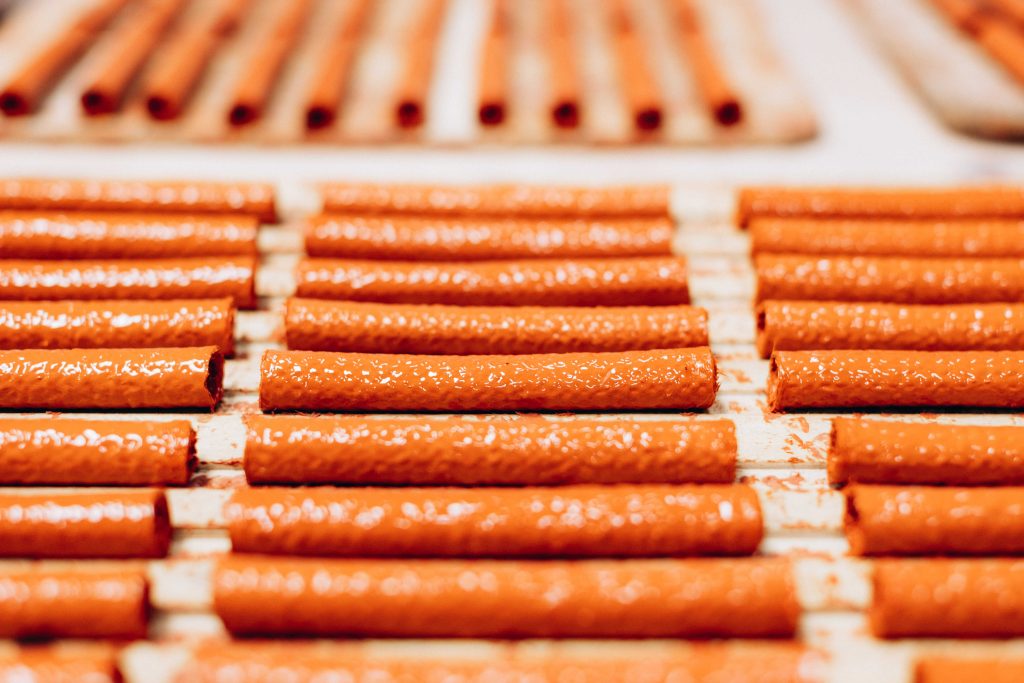

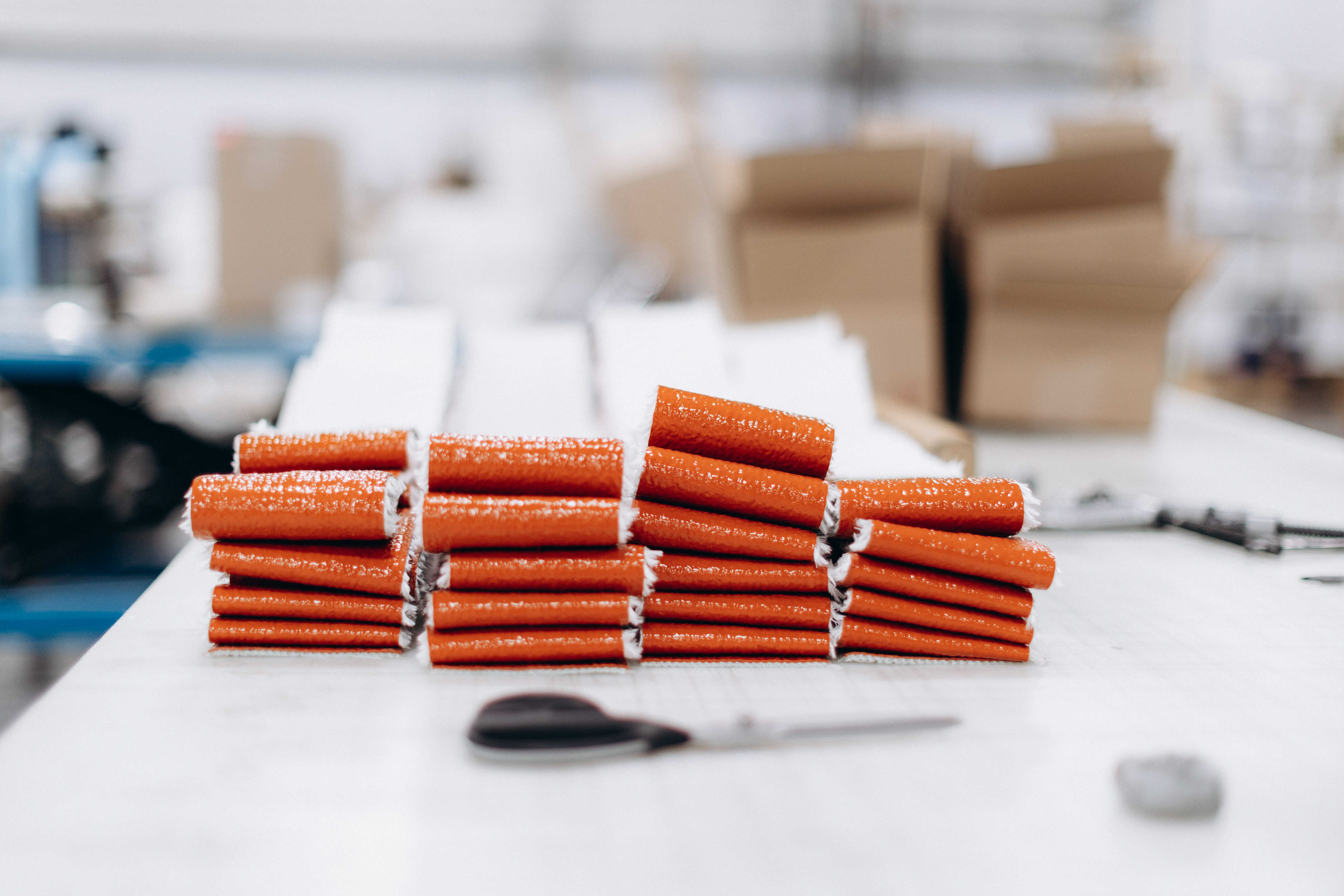

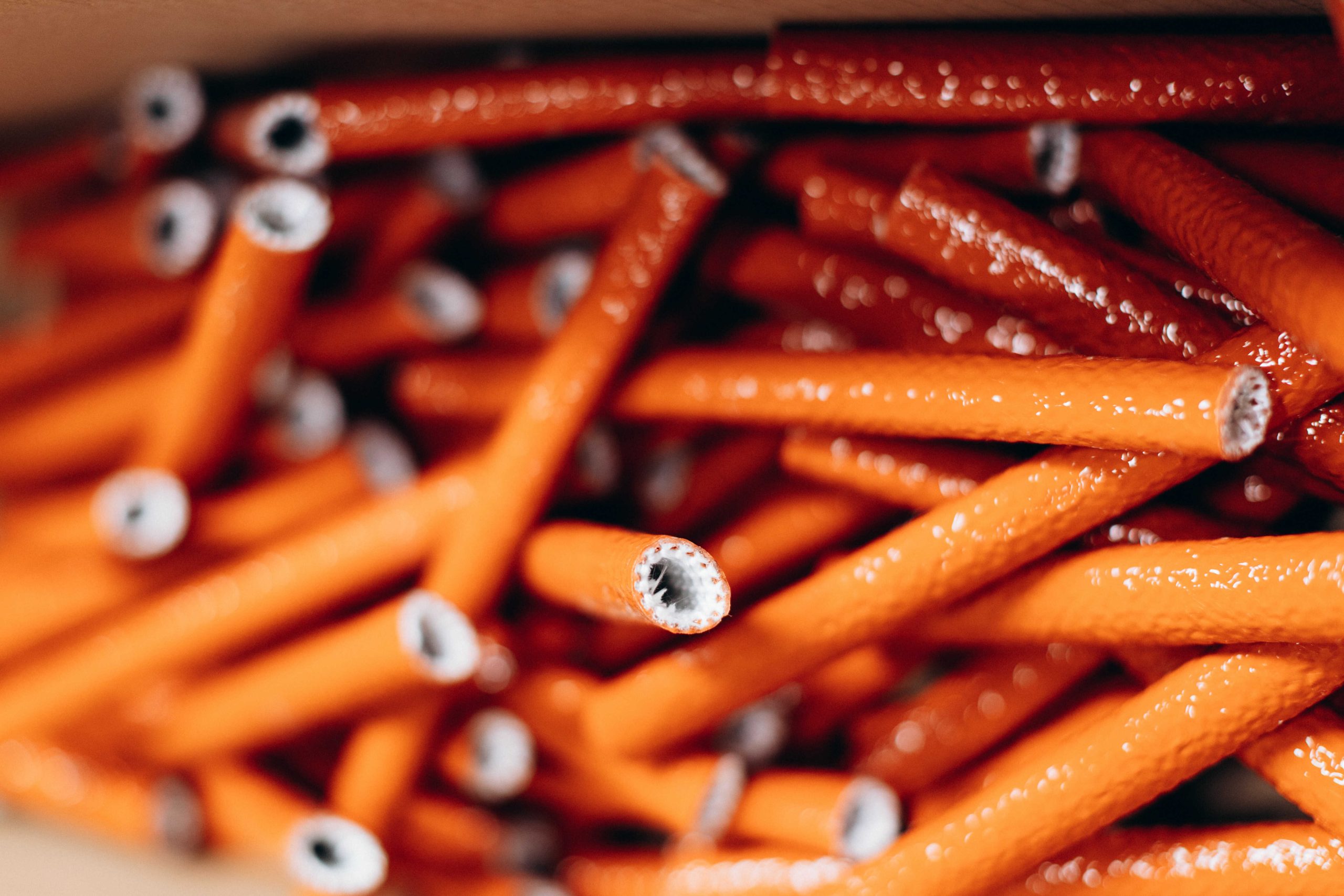

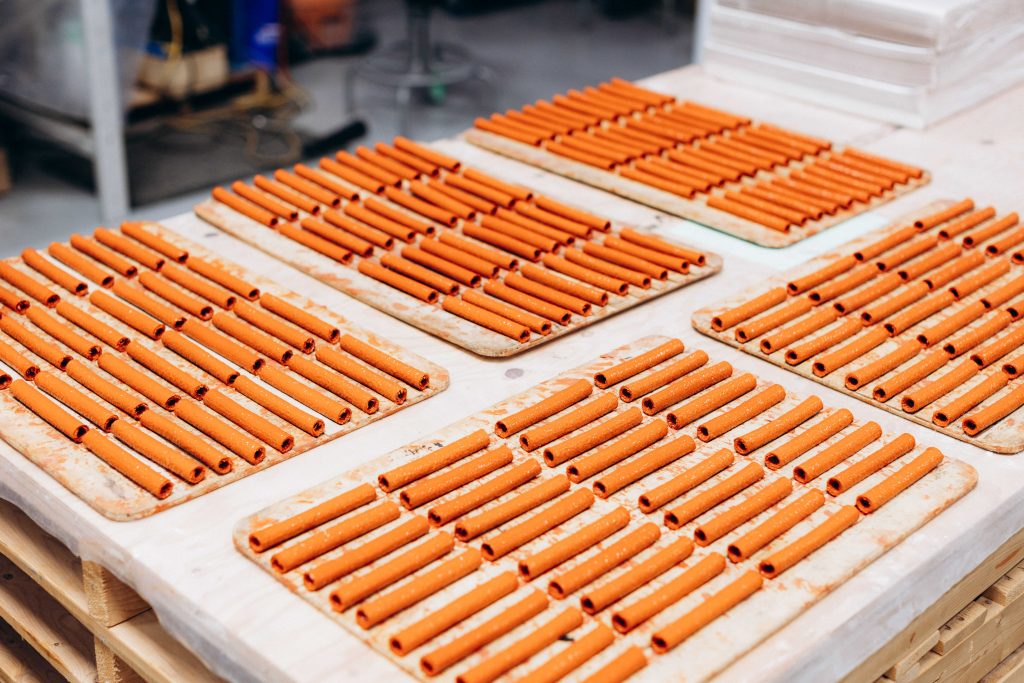

Pyrojacket Fire Sleeves
The world’s most certified fire sleeve – sheds molten splash and resists fire.
260 °C continuous · 1650 °C splash
Lines you can’t disconnect
Hook-and-Loop (VCO) Sleeves
Fire and heat sleeves that wrap on with a hook-and-loop closure – no disconnecting.
Retrofit in minutes
People from hot pipes

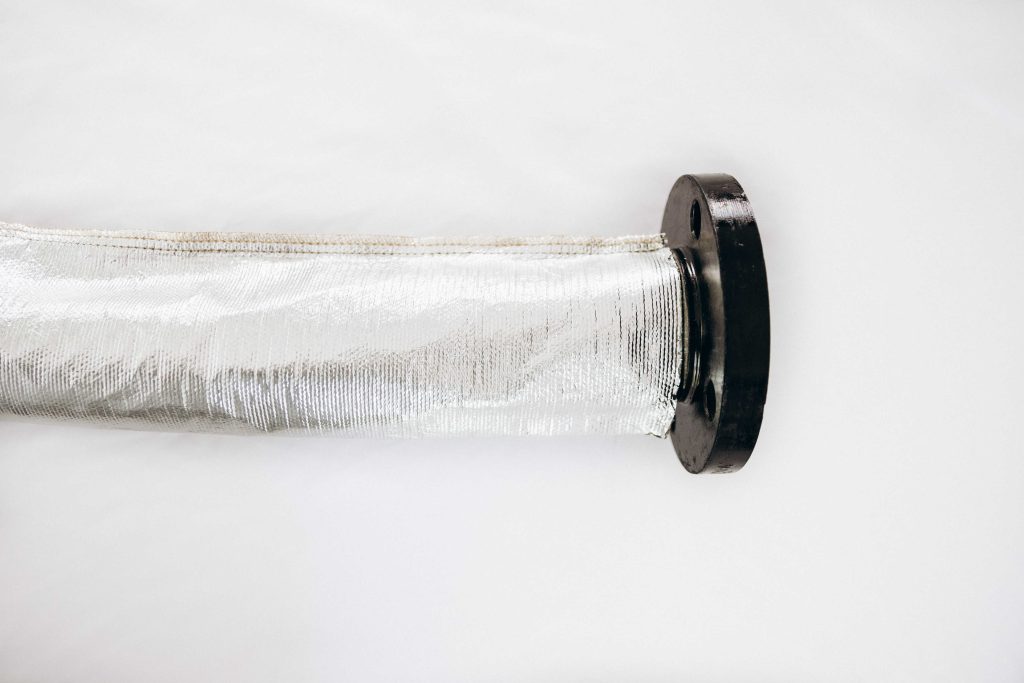

Insulating and Protective Sleeves
Insulating, reflective, silica and abrasion sleeves for hoses, cables and pipes.
Up to 982 °C continuous
Molten splash and weld spatter
EAF Cable Covers
Custom covers that protect water-cooled power cables on electric arc furnaces.
Made to order
Molten splash and weld spatter

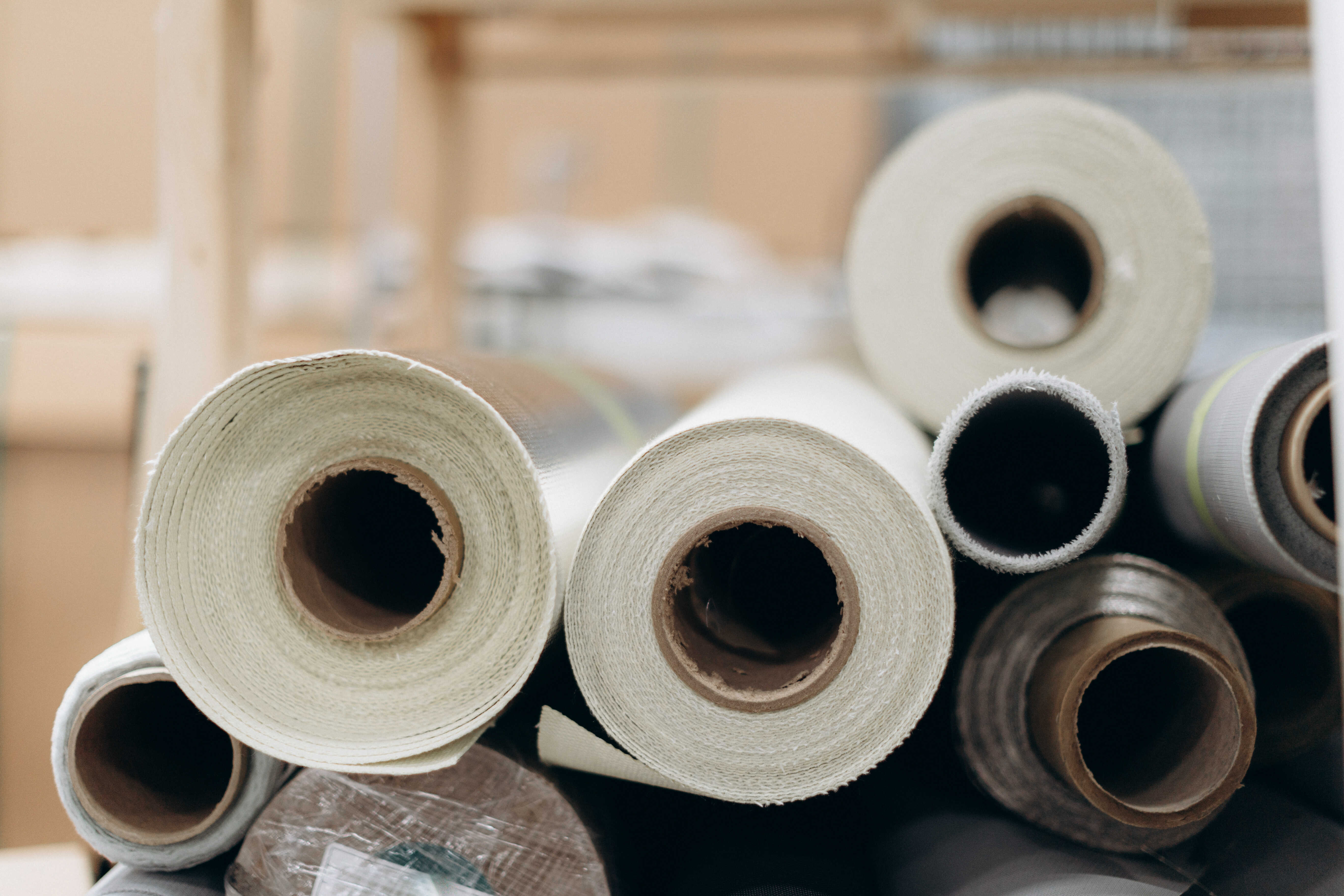

Pyroblanket and Silicaflex Blankets
Silicone-coated and silica fabrics for curtains, covers and molten splash protection.
17 – 96 oz grades
Radiant heat

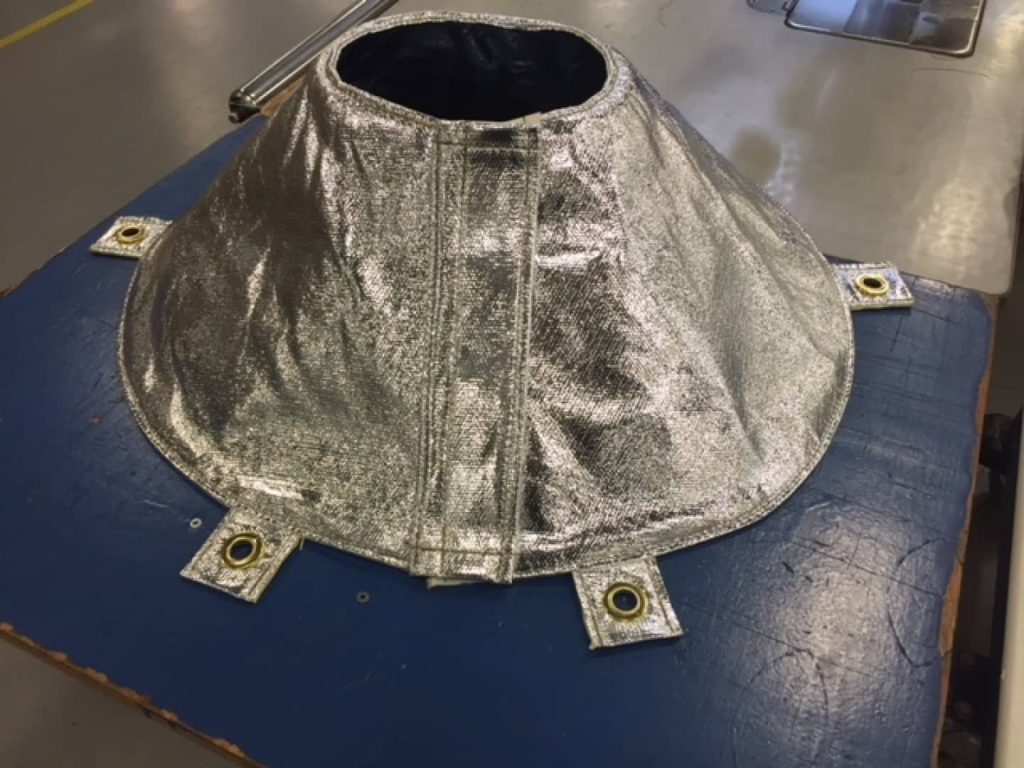

Reflective Blankets
Mirror-faced blankets that reflect up to 90% of radiant heat.
Reflects 90%+
Lines you can’t disconnect

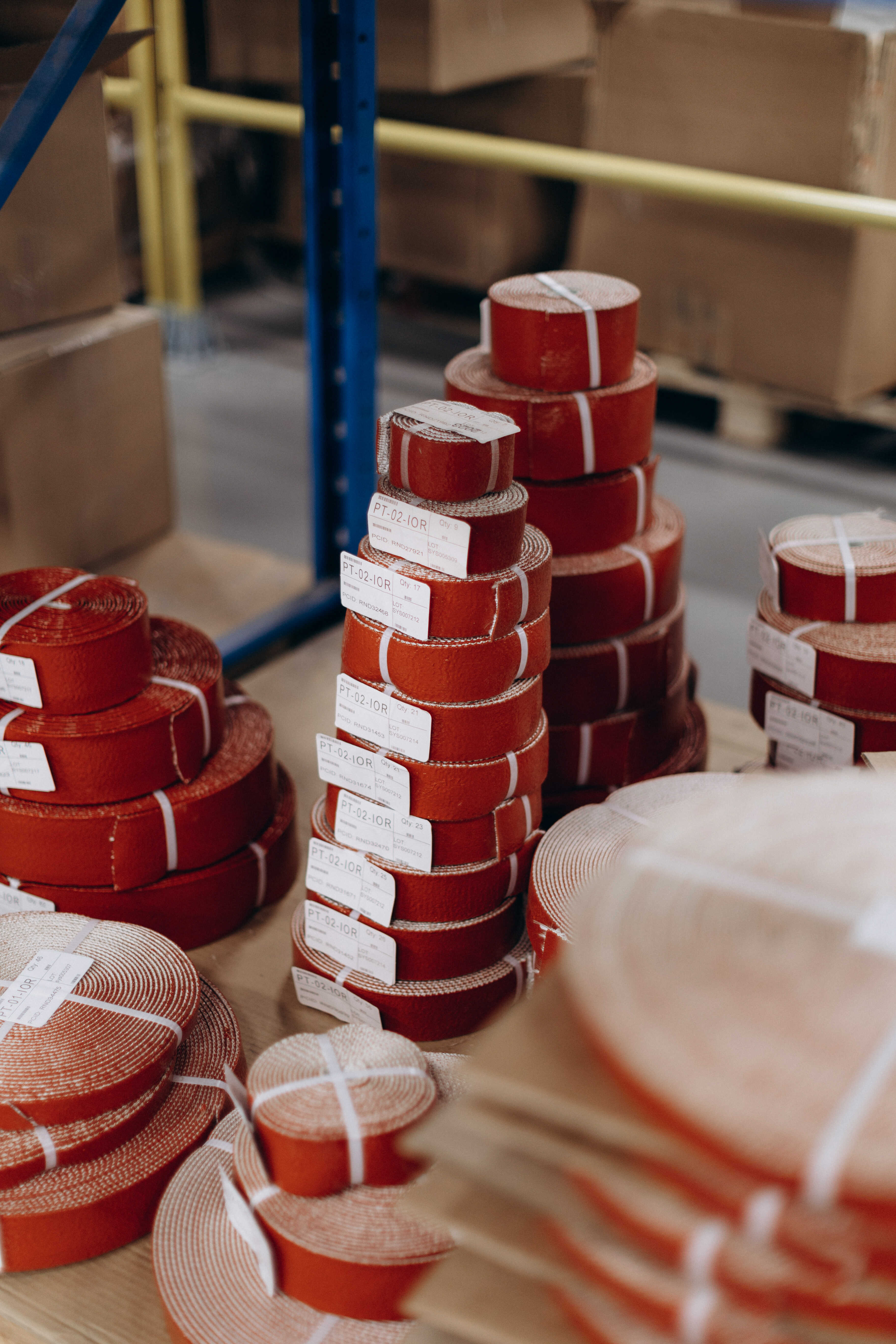

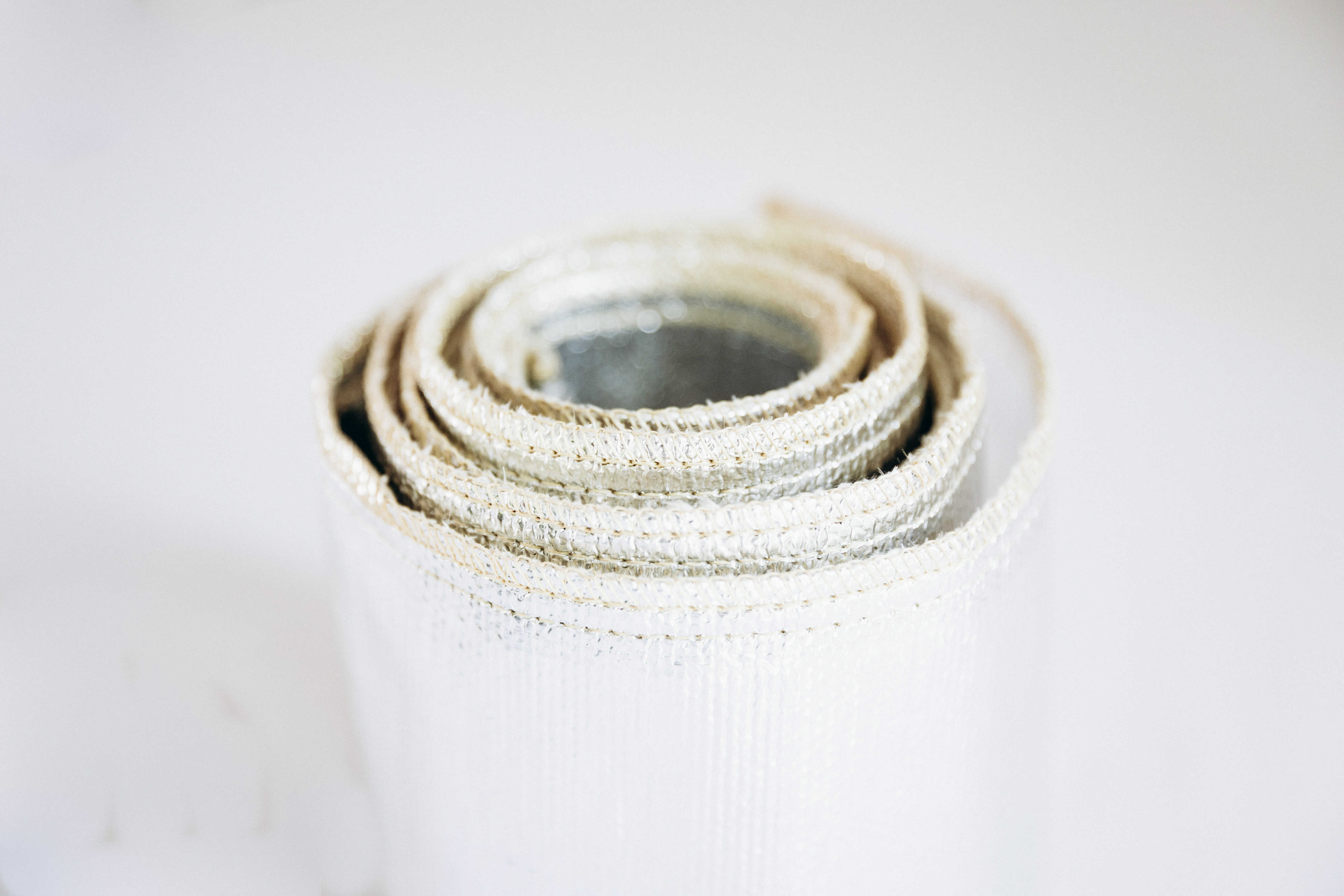

High-Temperature Tapes
Silicone, glass, silica and reflective tapes to wrap, seal and protect.
Up to 982 °C
Hoses and cables near heat or flame
Sealants and End Dip
Liquid silicone to seal sleeve ends, and a high-silica sealant for joints.
Sets in 10 minutes
How it works
How Silicone-Coated Glass Fibre Protects
Why it sheds molten metal and survives fire.
Sheds Splash
A thick coat of iron oxide red silicone rubber over a high-bulk glass fibre sleeve or cloth sheds molten steel, aluminium and glass splash almost instantly – before much heat can pass through.
Turns to a Crust in Fire
Exposed to flame for longer, the silicone turns into a hard silica (SiO₂) crust that keeps protecting the hose or cable underneath.
Insulates
The bulky glass fibre traps air, so it keeps heat in hot lines (protecting people from burns and saving energy) and keeps outside heat away from hoses and cables.
Why Insulflex, through Norman G Clark
The Most Certified Fire Sleeve
Certified
UL 1441, VW-1, SAE AS1072, MSHA, DNV-GL, EN 45545-2 rail and DMT fire tests to 1650 °C.
Non-Asbestos
Glass fibre and silica textiles designed as safe alternatives.
Made to Suit

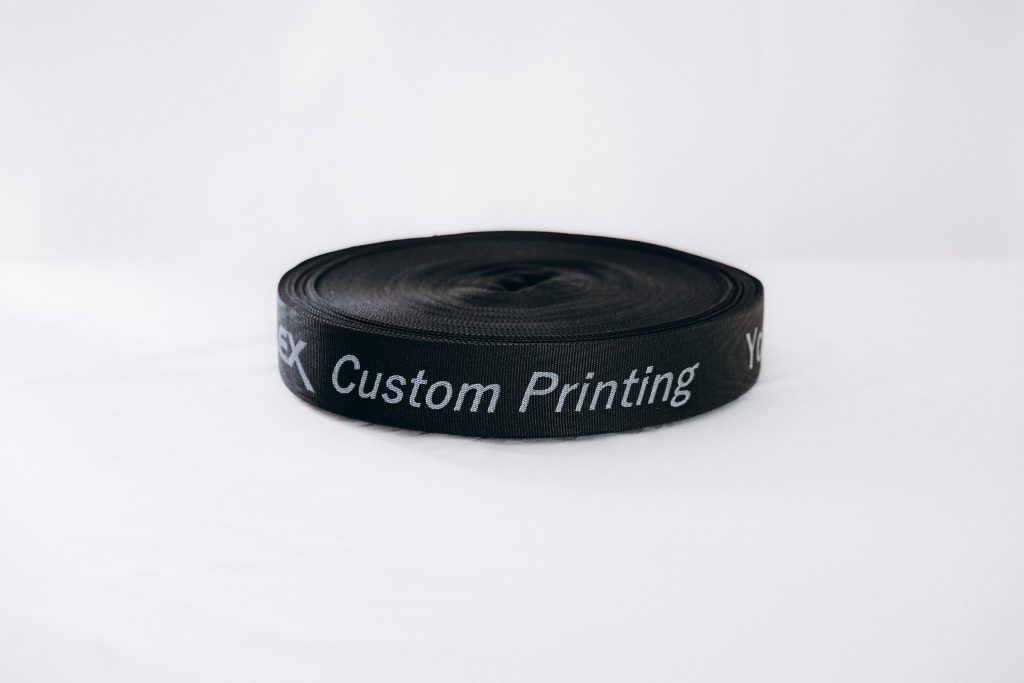

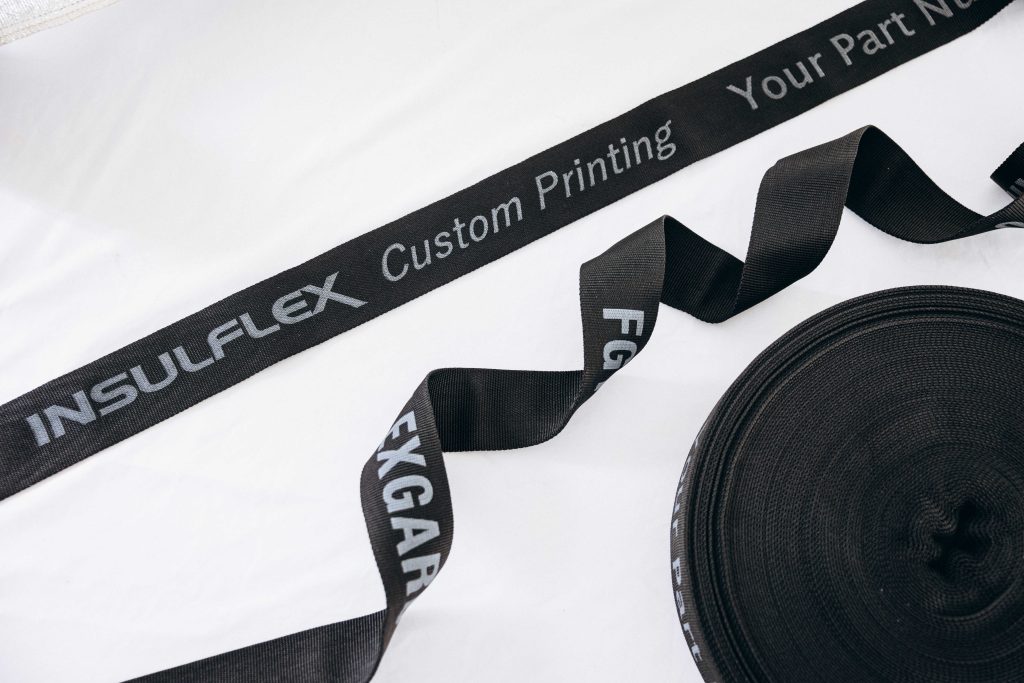

Custom diameters, lengths, shapes, closures and colours.

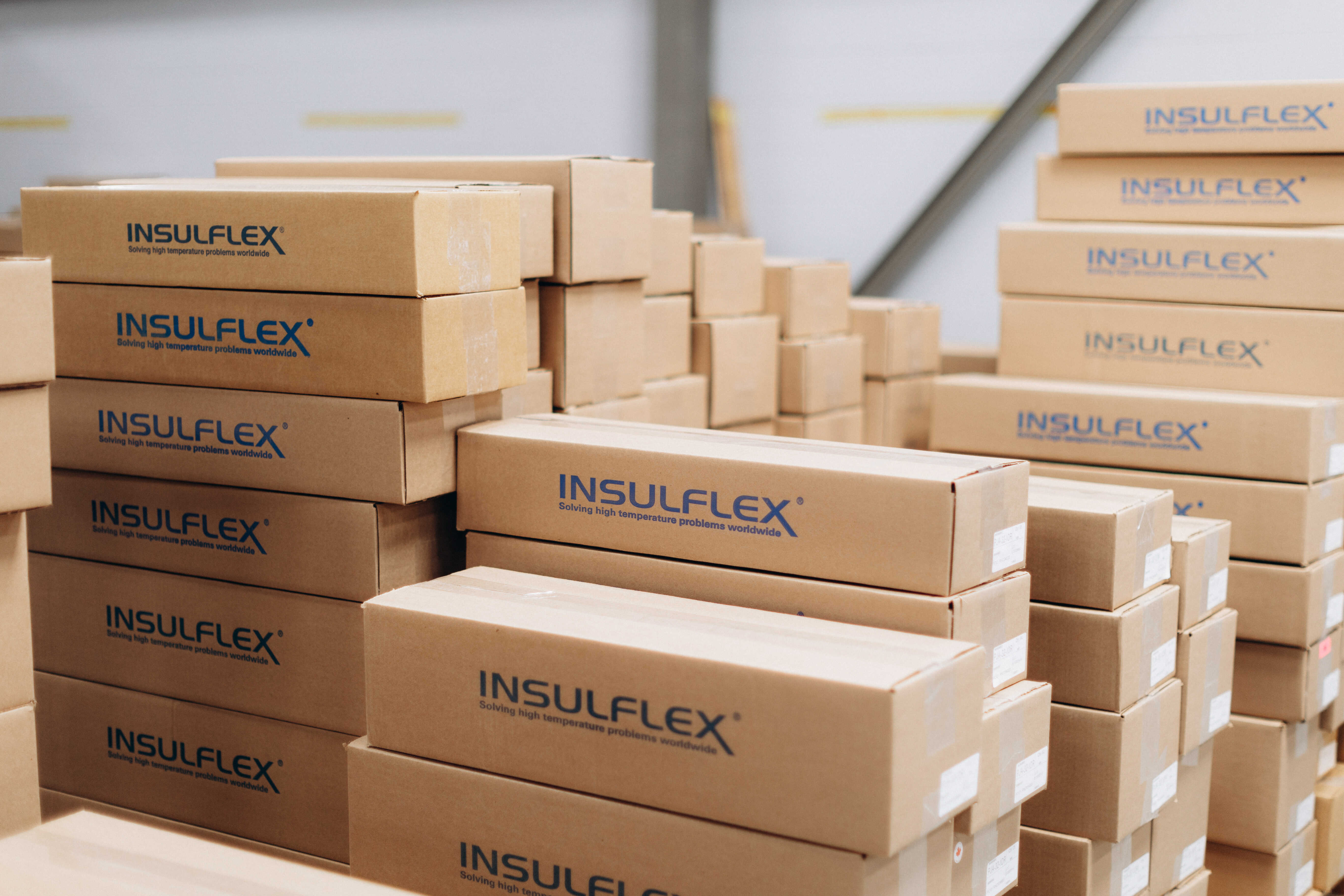

Stock in Australia
Norman G Clark is an authorised distributor – call (03) 9116 9200.
Video
Pyrojacket Under Fire
Literature
Catalogues and Data Sheets
Catalogue
- ADL Insulflex catalogue
Sleeves, blankets, tapes and sealants (Vol. 7) · PDF, 3.8 MB - Protective sleeves
Pyrojacket, VCO, Cool, reflective and braided sleeves · PDF, 3.8 MB - High-temperature blankets
Pyroblanket, Silicaflex, Pyreflect and Fiberflect · PDF, 3.8 MB - Tapes and sealants
Pyrosil, Pyrotape, Silicaflex, Fiberflect, Pyrosealant, End Dip · PDF, 3.8 MB - Certifications
Test standards and approvals · PDF, 3.8 MB
Certification
- Pyrojacket certifications
Aerostyle Pyrojacket test and approval list · PDF, 1.4 MB
Talk to Us About Your Application
Tell us about the job – the machine, the conditions and what it has to do – and we’ll help you choose the right ADL Insulflex product.
