F3 Series HT/S Repair and Upgrade Kits
Designed and made in Australia under licence from Horton USA for harsh Australian conditions, the F3 (F35008) Series replaces the F25008 range – with high-temperature seals and bearings, finned discs and colour-coded kits.
- 4kit grades
- 2,000+ in·lbtorque (HD)
- 32" 9-bladefans (HD)
- 9.5"disc HT/S drives

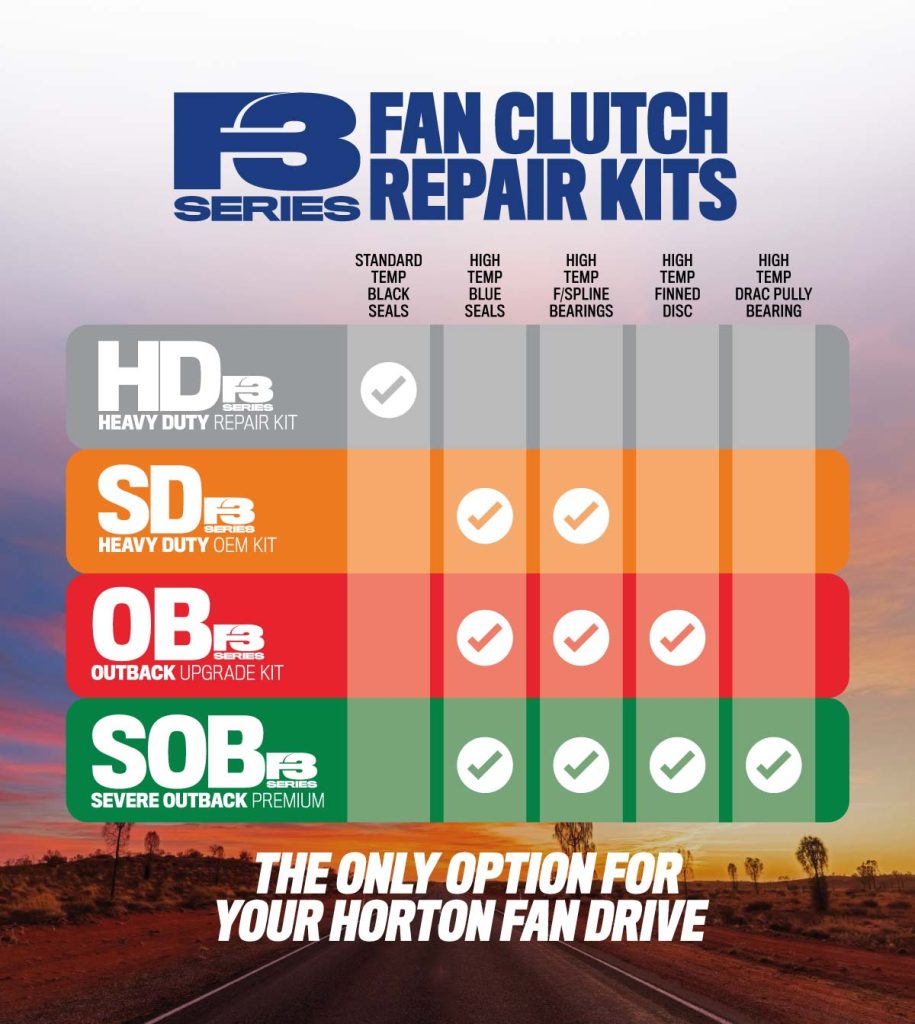

The range
The F3 Range
HD Heavy Duty – F35008HD
Standard-temperature NBR seals; for singles and pre-EGR (c. 2008) engines.
- All 9.5" HT/S drives
SD Super Duty OEM – F35008SD
OEM specification: HNBR seals and Outback bearing; 30% more temperature tolerance.
- B-doubles and road trains
OB Outback – F35008OB
SD plus a red finned piston friction disc for high ambient temperatures.
- High ambient heat
SOB Severe Outback – F35008SOB
Premium kit: green finned disc and Outback DRAC pulley bearing.
- Selected drives – check with us
Norman G Clark Drives by Kenworth Model
| KW Model | Norman G Clark Original Fan Drives |
| T402,T403 | FH9804XD, FH9904XD |
| T408, T409 | FH9804XD, FH9904XD, FH9806XD, FH9906XD, FH9806SD, FH9906SD, PH9906SD |
| T408SAR, T409SAR | FH9807XD, FH9907XD, FH9815XD, FH9915XD, FH9833XD, FH9933XD, FH9833SD, FH9933SD, PH9933SD, FH9833SOB, FH9933SOB,PH9933SOB |
| T608, T609, T658, T659 | FH9807XD, FH9907XD, FH9834XD, FH9934XD, FH9834SD, FH9934SD, PH9934SD, FH9834SOB, FH9934SOB, PH9934SOB |
| T908, T909 | FH9808XD, FH9908XD, FH9808SD, FH9908SD, PH9908SD, FH9842SD, FH9942SD, PH9942SD, FH9842SOB, FH9942SOB, PH9942SOB |
| C508, C509 | FH9829XD, FH9929XD, FH9826XD, FH9824XD, FH9829SD, FH9929SD, PH9929SD, FH9829SOB, FH9929SOB, PH9929SOB |
| K108 | FH9810XD |
| K200 | FH9816XD, FH9916XD, FH9816SD, FH9916SD, PH9916SD, FH9816SOB, FH9916SOB, PH9916SOB |
Norman G Clark Drives – Other Makes and Models
| All Other Makes & Models |
| F991110, F997087, FA9849XD, FB9849, FC9849, FD9849, FE9849XD, FG9849, FH9849XD, FH9879XD, FI9849, FJ9849, FK9875XD, FL9849, FL9879XD, FM9849XD, FN9849, FP9849XD, FT9849XD, FV9849XD, FW9849, FX9849XD |
How it works
How a Rebuild Works
Back to original specification.
Replace What Wears
A Horton kit replaces the friction linings, bearings, seals and springs, so the drive goes back to its original specification for less than a new one.
Quick Fit: Pre-Assembled
Quick Fit kits come with the front fan mounting assembly, liner and clutch pack already built. They bolt on with eight screws – no left-hand thread, no special Torx Plus bit and no air needed to seat the assembly.
Test It
After every HT/S or DMA repair, an air decay test (ADT150) confirms the seals are seated and the drive holds air.
Why F3 kits
Made for Australian Heat
High-Temp Seals
Blue HNBR D-ring and O-ring seals on SD, OB and SOB.
Outback Bearing
Higher-temperature fine spline bearing assembly.
Finned Discs
Red (OB) and green (SOB) discs dissipate more heat.
Easy to Identify
Each grade has its own colour.
Literature & related
More Information
- HT/S repair kits
Product guide · PDF, 5.9 MB - S & HT/S generic view
Parts list · PDF, 244 KB - Repair kit installation
Spring-engaged drive kit instructions · PDF, 2.6 MB
Not Sure Which One You Need?
Tell us about the job – the machine, the conditions and what it has to do – and we’ll help you choose the right Horton repair kits product.
