S & HT/S Fan Drives
The hub bearing assembly on the Horton S & HTS Fan Drive makes it perfect for high run time applications.
The S & HTS PFD (Piston Friction Disc) features the System Sentry®. This patented device reacts to heat build up caused by fan drive slippage or fan obstructions. When it senses excessive heat, the System Sentry releases, disengaging the fan drive before extensive damage occurs to the cooling system.
A new longer life air cartridge is also included in the high performance S & HTS Fan Drives. This cartridge reduces the possibility of air leaks with its long life carbon tip and double o-ring air seal.
The technologically advanced bearing assembly design, PFD with System Sentry™ and new cartridge, combine to provide you with a premium On/Off Fan Drive that will perform consistently under extreme conditions.
S-Type Fan Drive
Features & Benefits
- Longer life
- 30% greater tolerance of temperature extremes
- Less likelihood of o-ring spiral fatigue
- Less breakage and leakage
- Extended service life
Applications
- Designed for long life and harsh under hood environments
- Perfect for high run time applications
HT/S XD Fan Drive
Features & Benefits
- OEM Specifications (Pre May 2016)
- High Temp HNBR (Blue) D-Ring & O-Ring Seals
- Standard Fine Spline Assy Bearing
- Longer life
- 30% greater tolerance of temperature extremes
- Less likelihood of o-ring spiral fatigue
- Less breakage and leakage
- Extended service life
Applications
- Designed for long life and harsh under hood environments
- All 9.5” Disc Horton HT/S Drives
- Perfect for high run time applications
- For heavy duty diesel engines: B-Doubles & Roadtrains
HT/S SD OEM Fan Drive
Features & Benefits
- OEM Specifications (Post May 2016)
- High Temp HNBR (Blue) D-Ring & O-Ring Seals
- Higher Temp Outback Fine Spline Assy Bearing
- Longer life
- 30% greater tolerance of temperature extremes
- Less likelihood of o-ring spiral fatigue
- Less breakage and leakage
- Extended service life
Applications
- Designed for long life and harsh under hood environments
- All 9.5” Disc Horton HT/S Drives
- Perfect for high run time applications
- For heavy duty diesel engines: B-Doubles & Roadtrains
HT/S OB Upgrade Fan Drive
Features & Benefits
- Upgrade of OEM Specifications
- High Temp HNBR (Blue) D-Ring & O-Ring Seals
- Higher Temp Outback Fine Spline Assy Bearing
- Longer life
- Red Piston Friction Disc with finned design for increased heat dissipation
- Extended service life
Applications
- Designed for long life in high ambient temperatures and harsh under hood environments
- All 9.5” Disc Horton HT/S Drives
- Perfect for high run time applications
- For heavy duty diesel engines: B-Doubles & Roadtrains

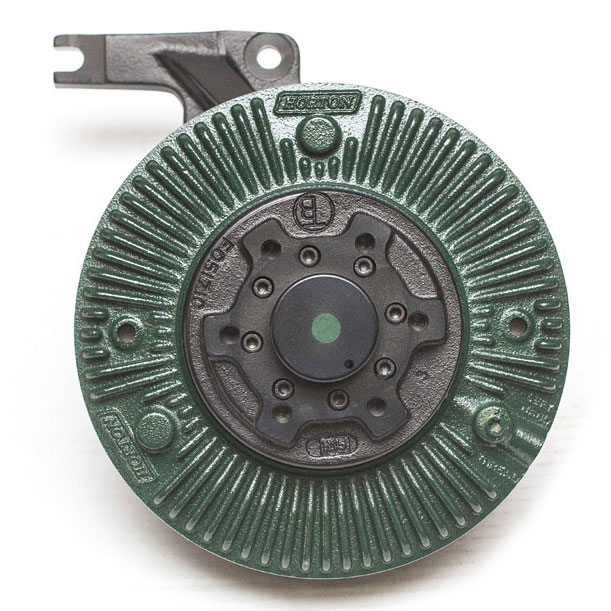

HT/S SOB Premium Fan Drive
Features & Benefits
- Upgrade of OEM Specifications
- High Temp HNBR (Blue) D-Ring & O-Ring Seals
- Higher Temp Outback Fine Spline Assy Bearing
- Longer life
- Green Piston Friction Disc with finned design for increased heat dissipation
- Single Higher Temp Outback DRAC Pulley Bearing
- Extended service life
Applications
- Designed for long life in high ambient temperatures and harsh under hood environments
- Selected 9.5” Disc Horton HT/S Drives*
- Perfect for high run time applications
- For heavy duty diesel engines: B-Doubles & Roadtrains
- Premium kit for Severe Outback Duty
Please see list below of all compatible Norman G. Clark Drives.
| KW Model | Norman G. Clark Original Fan Drives |
| T402,T403 | FH9804XD, FH9904XD |
| T408, T409 | FH9804XD, FH9904XD, FH9806XD, FH9906XD, FH9806SD, FH9906SD, PH9906SD |
| T408SAR, T409SAR | FH9807XD, FH9907XD, FH9815XD, FH9915XD, FH9833XD, FH9933XD, FH9833SD, FH9933SD, PH9933SD, FH9833SOB, FH9933SOB,PH9933SOB |
| T608, T609, T658, T659 | FH9807XD, FH9907XD, FH9834XD, FH9934XD, FH9834SD, FH9934SD, PH9934SD, FH9834SOB, FH9934SOB, PH9934SOB |
| T908, T909 | FH9808XD, FH9908XD, FH9808SD, FH9908SD, PH9908SD, FH9842SD, FH9942SD, PH9942SD, FH9842SOB, FH9942SOB, PH9942SOB |
| C508, C509 | FH9829XD, FH9929XD, FH9826XD, FH9824XD, FH9829SD, FH9929SD, PH9929SD, FH9829SOB, FH9929SOB, PH9929SOB |
| K108 | FH9810XD |
| K200 | FH9816XD, FH9916XD, FH9816SD, FH9916SD, PH9916SD, FH9816SOB, FH9916SOB, PH9916SOB |
| All Other Makes & Models |
| F991110, F997087, FA9849XD, FB9849, FC9849, FD9849, FE9849XD, FG9849, FH9849XD, FH9879XD, FI9849, FJ9849, FK9875XD, FL9849, FL9879XD, FM9849XD, FN9849, FP9849XD, FT9849XD, FV9849XD, FW9849, FX9849XD |
